Description

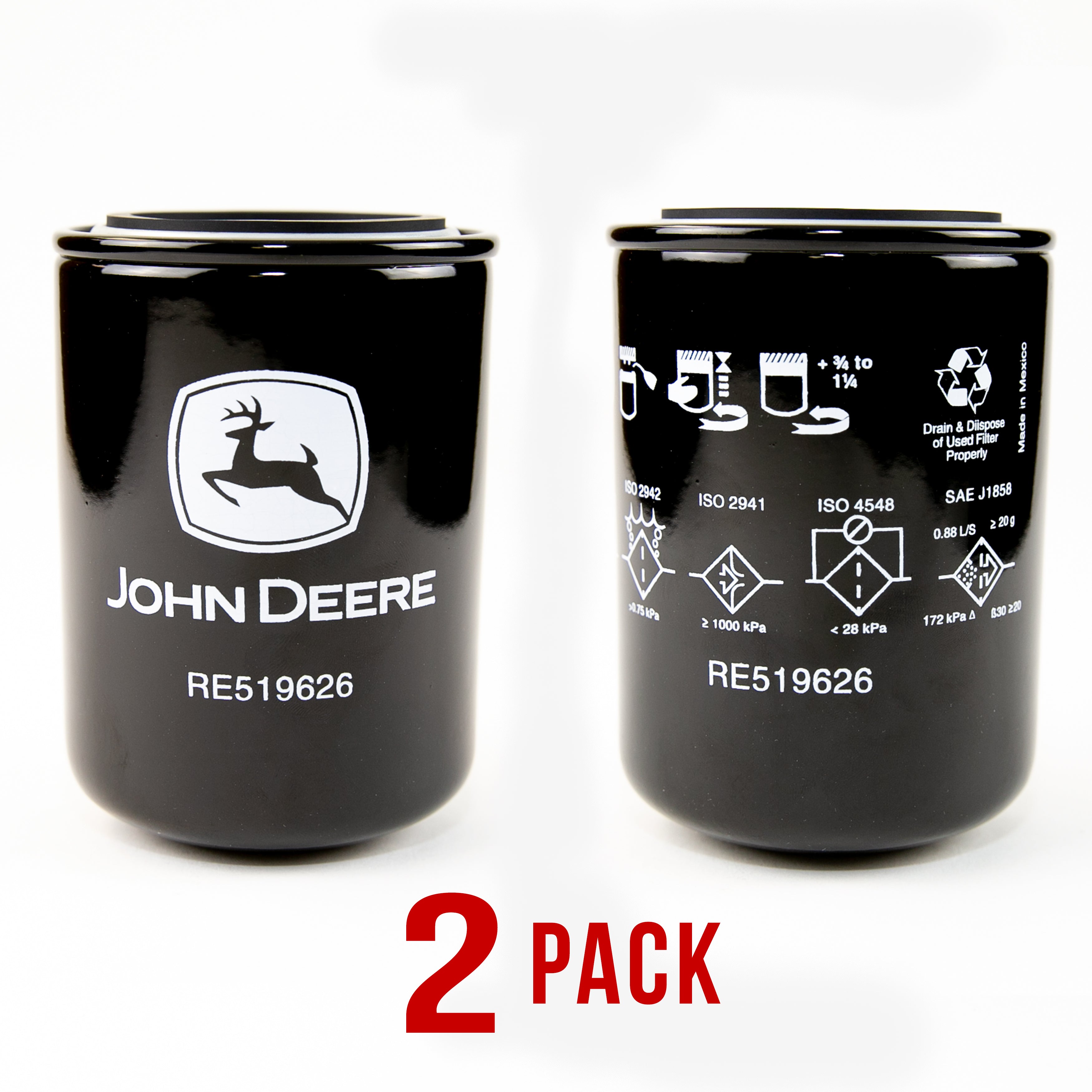

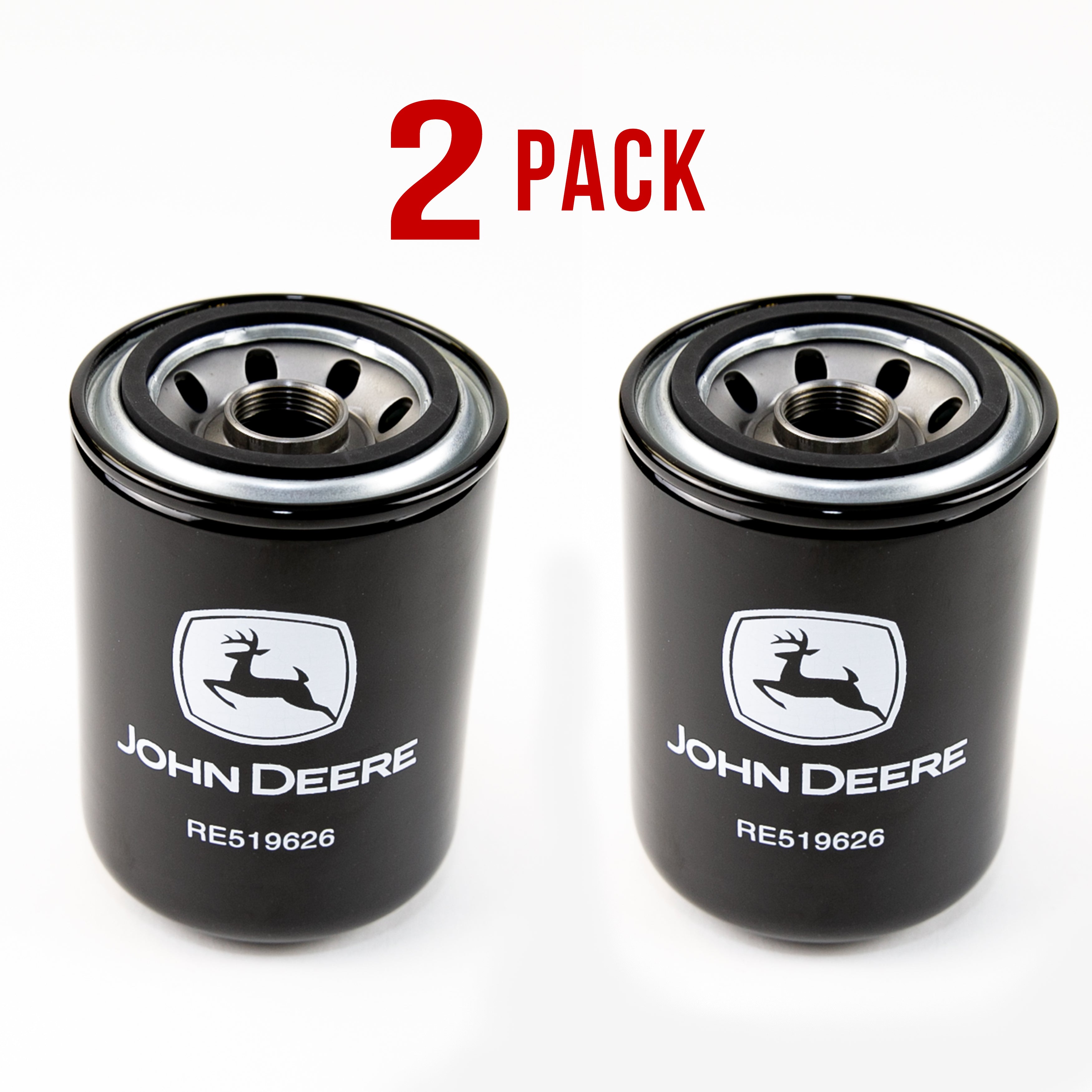

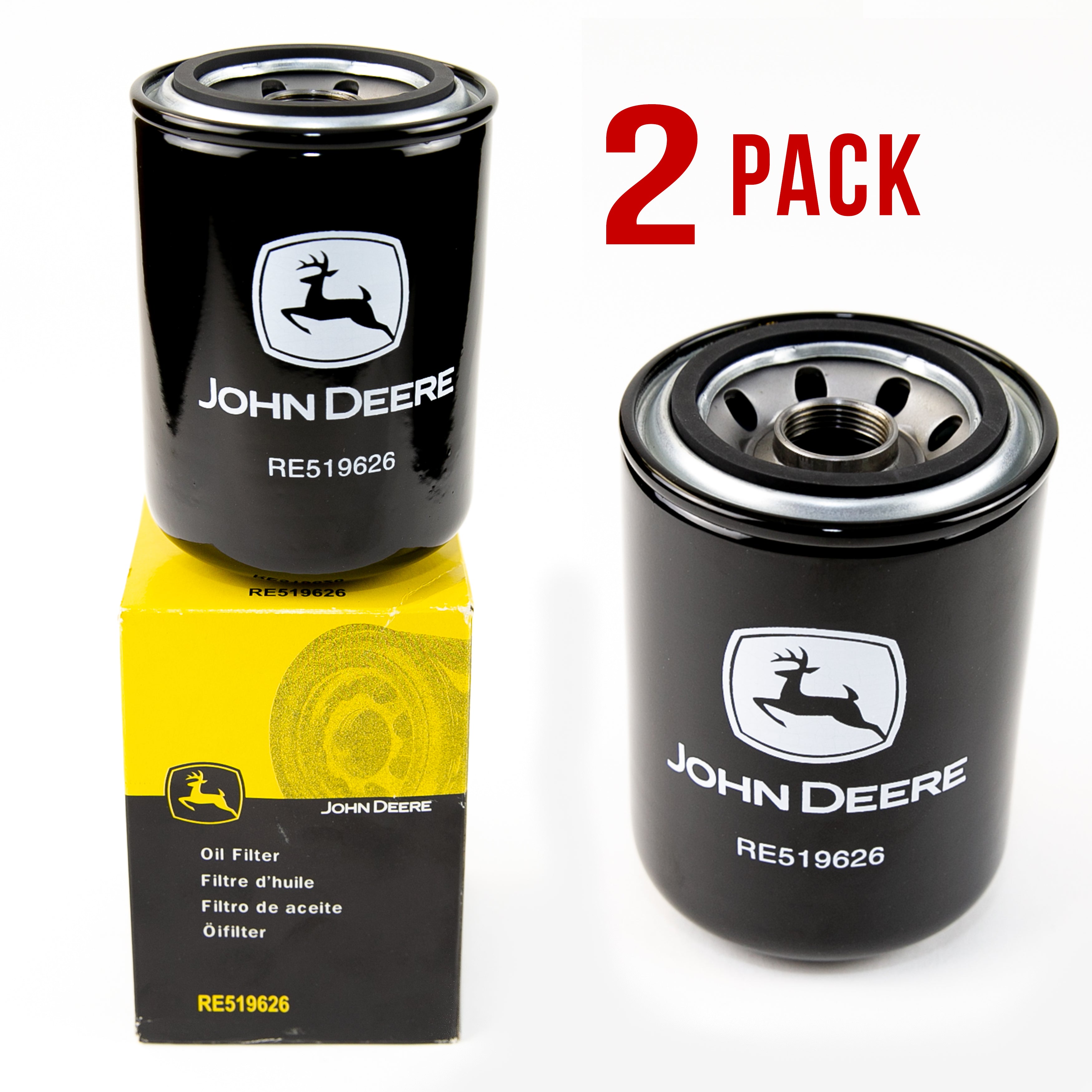

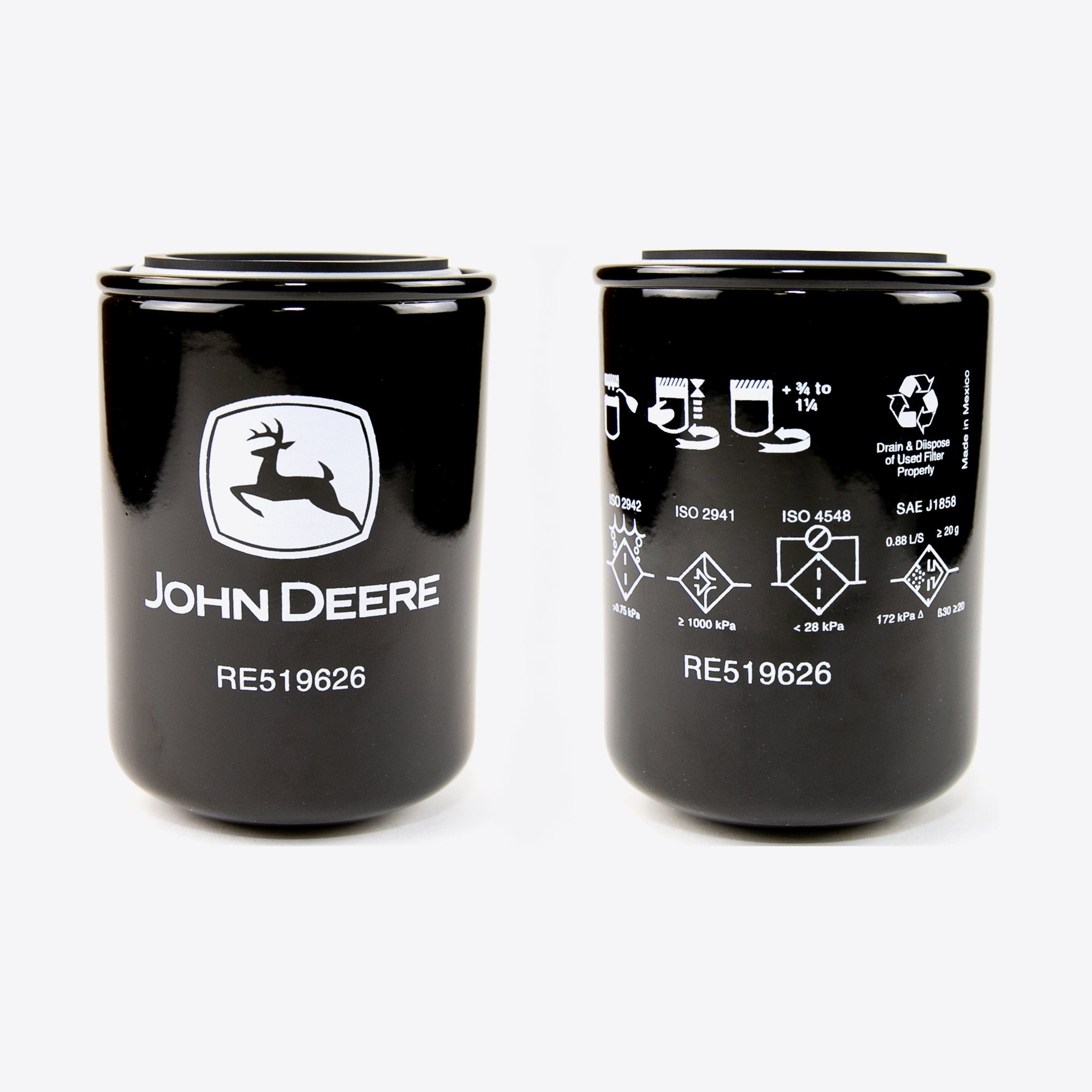

Genuine John Deere RE519626 engine oil filter for utility tractors, skid steers, compact track loaders and PowerTech diesel engines. The full-flow design with a built-in bypass valve keeps oil moving even when the filter is loaded or the oil is cold. Replaces RE518977. Two filters per pack.
Key Features
- Genuine John Deere part – original equipment RE519626, replaces RE518977.
- Full-flow with bypass valve – protects the engine with continued lubrication if the filter clogs or in cold weather.
- Even pleat spacing – uses the full media surface for more filtering capacity.
- Clean installation – no leak path between element and end cap, and the element is sealed in a poly bag until use.
- 2 filters per pack – ready for this service and the next.
Specifications
| Part number | John Deere RE519626 |
|---|---|
| Filter type | Spin-on, full-flow with bypass valve |
| Outside diameter | 93 mm (3.66 in.) |
| Length | 136 mm (5.35 in.) |
| Flow rate | 0.88 L/sec |
| Replaces | RE518977 |
| Quantity | 2 filters |
Compatibility
- Utility tractors: 5045D, 5045E, 5050E, 5055D, 5055E, 5058E, 5065E, 5065M, 5067E, 5075E, 5075M, 5103, 5203, 5225, 5303, 5325, 5325N, 5403, 5503
- Compact tractors: 4120, 4320, 4520, 4720
- Skid steers: 313, 315, 317, 318D, 319D, 320, 320D, 323D, 325, 326D, 328, 328D, 329D, 332, 332D, 333D
- Compact track loaders: CT315, CT322, CT332
- Loaders: 244J, 304J, 324J
- Combines: R40, W50, W70
- Engines: select PowerTech 3029, 4024 and 4045 diesel engines
Fit can vary by serial number. Always confirm with your machine’s parts catalog or serial number before ordering.
Service Tips
- Replace the oil filter at every oil change, following the interval in your operator’s manual.
- Lightly oil the gasket before installing and hand-tighten per the instructions on the filter.
John Deere and PowerTech are trademarks of Deere & Company.
