Description

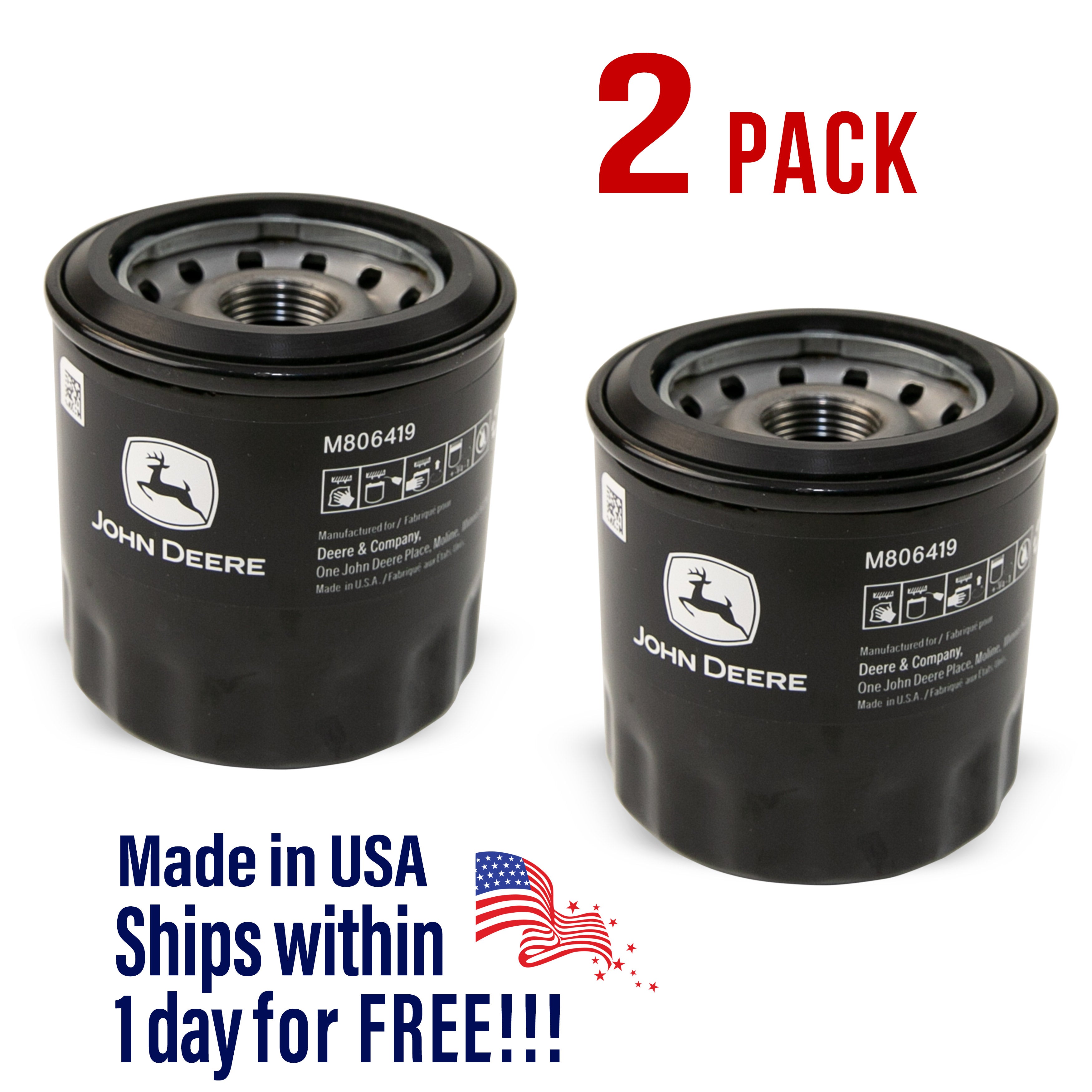

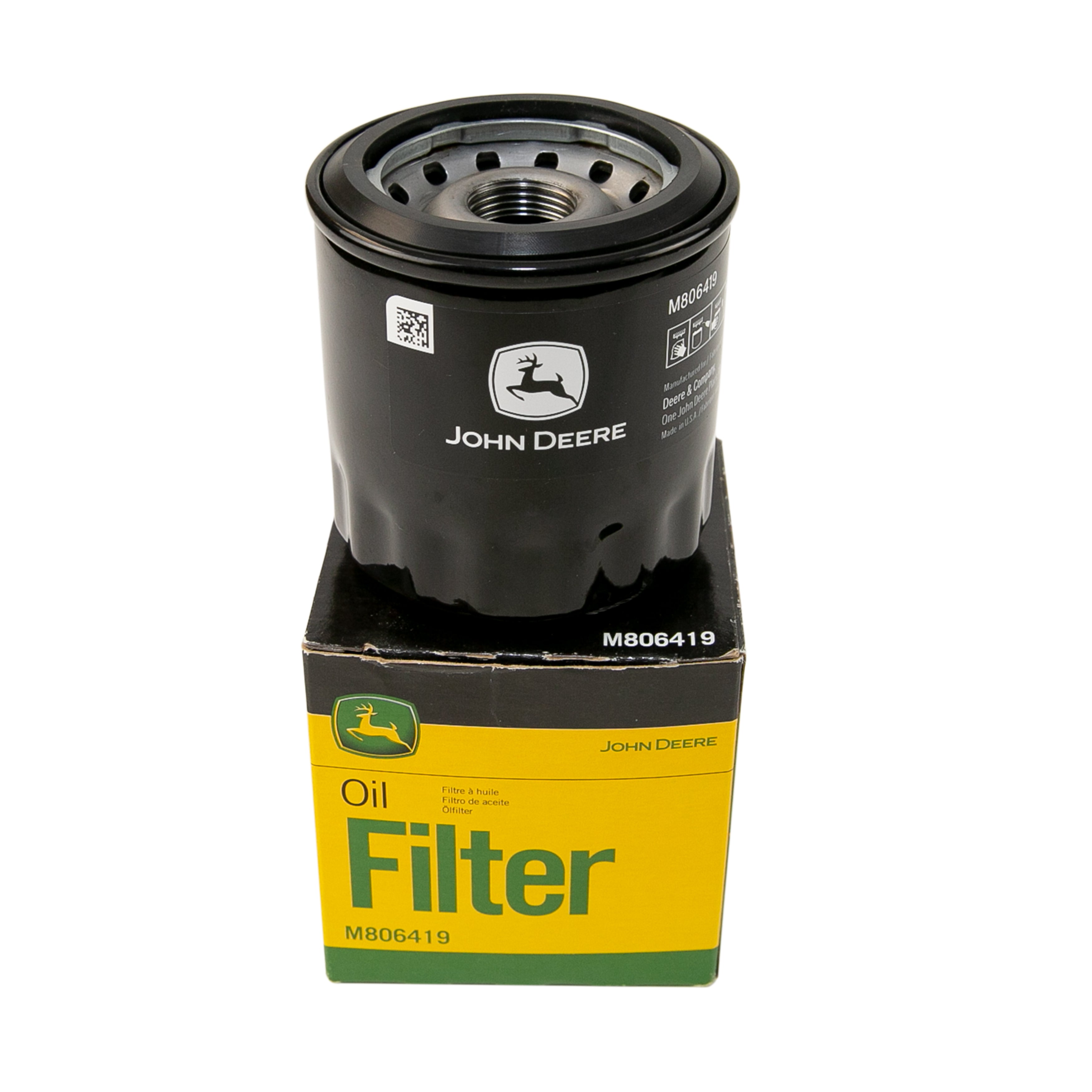

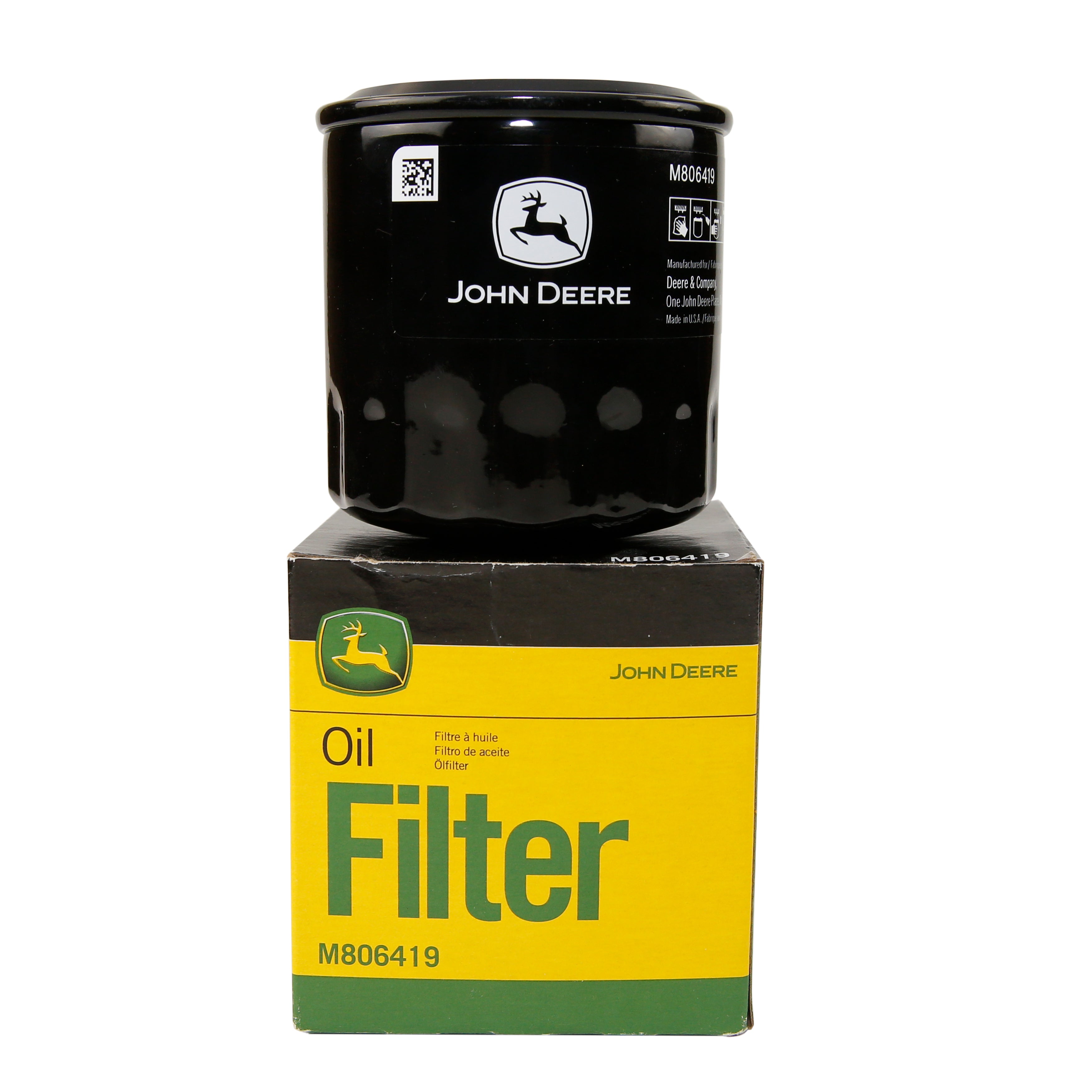

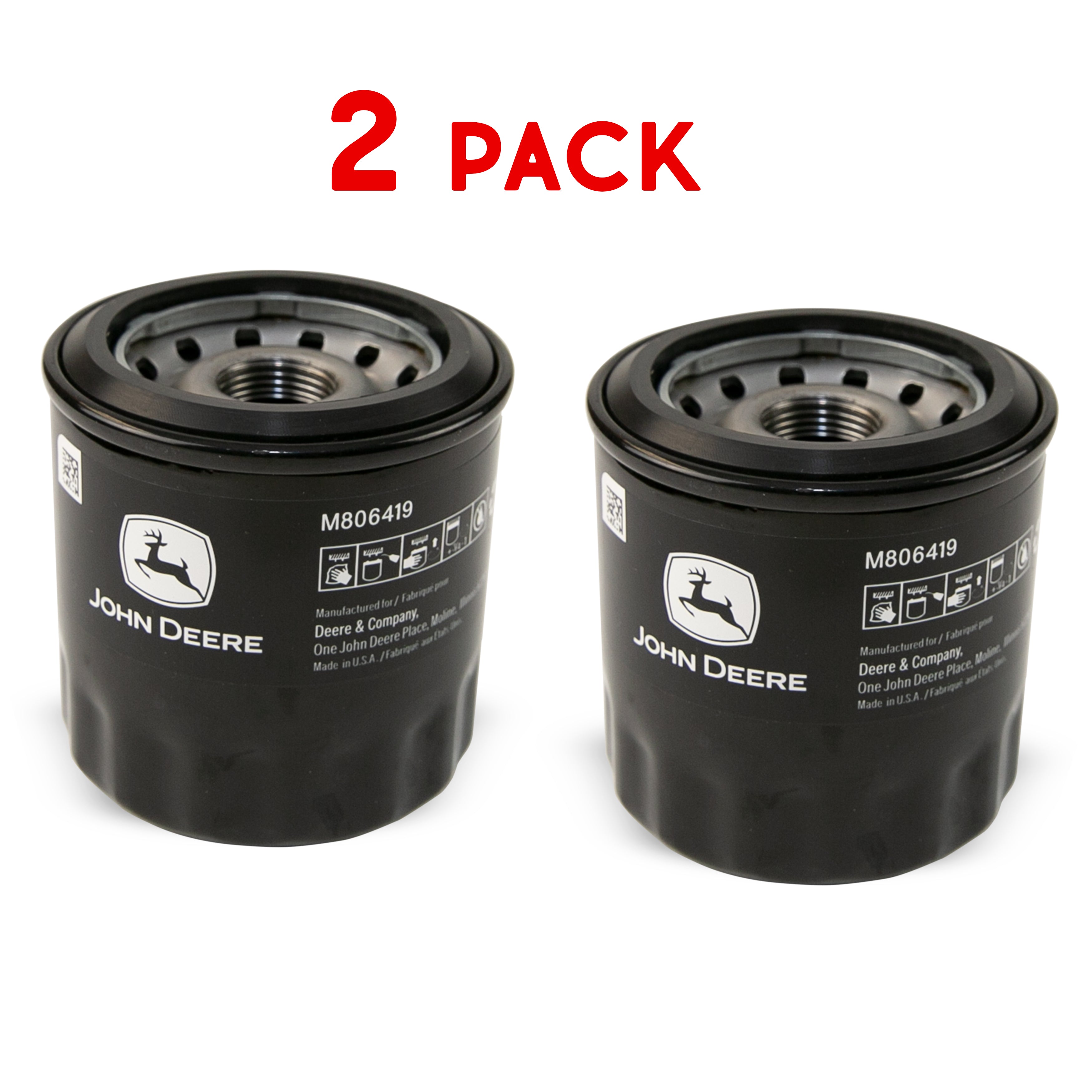

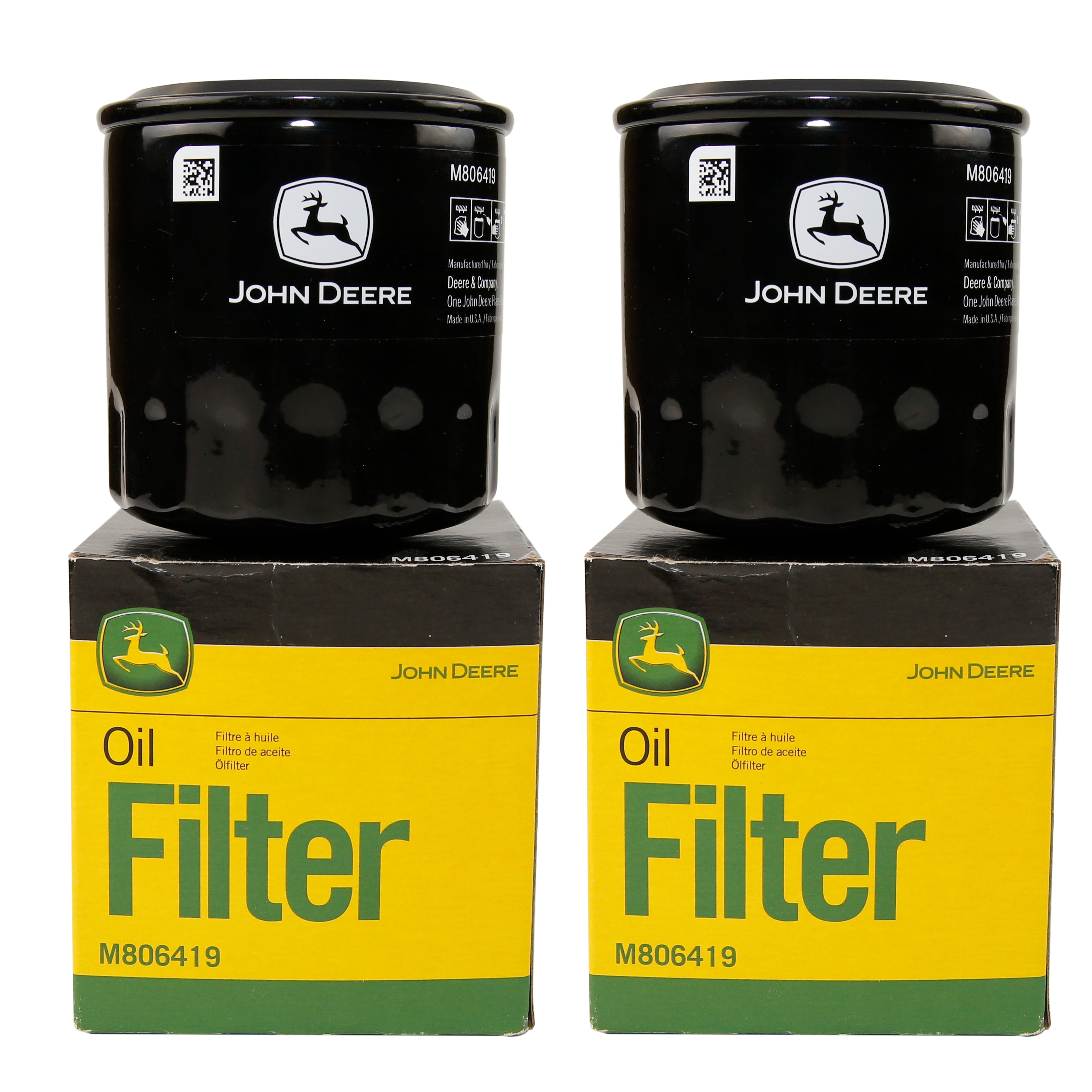

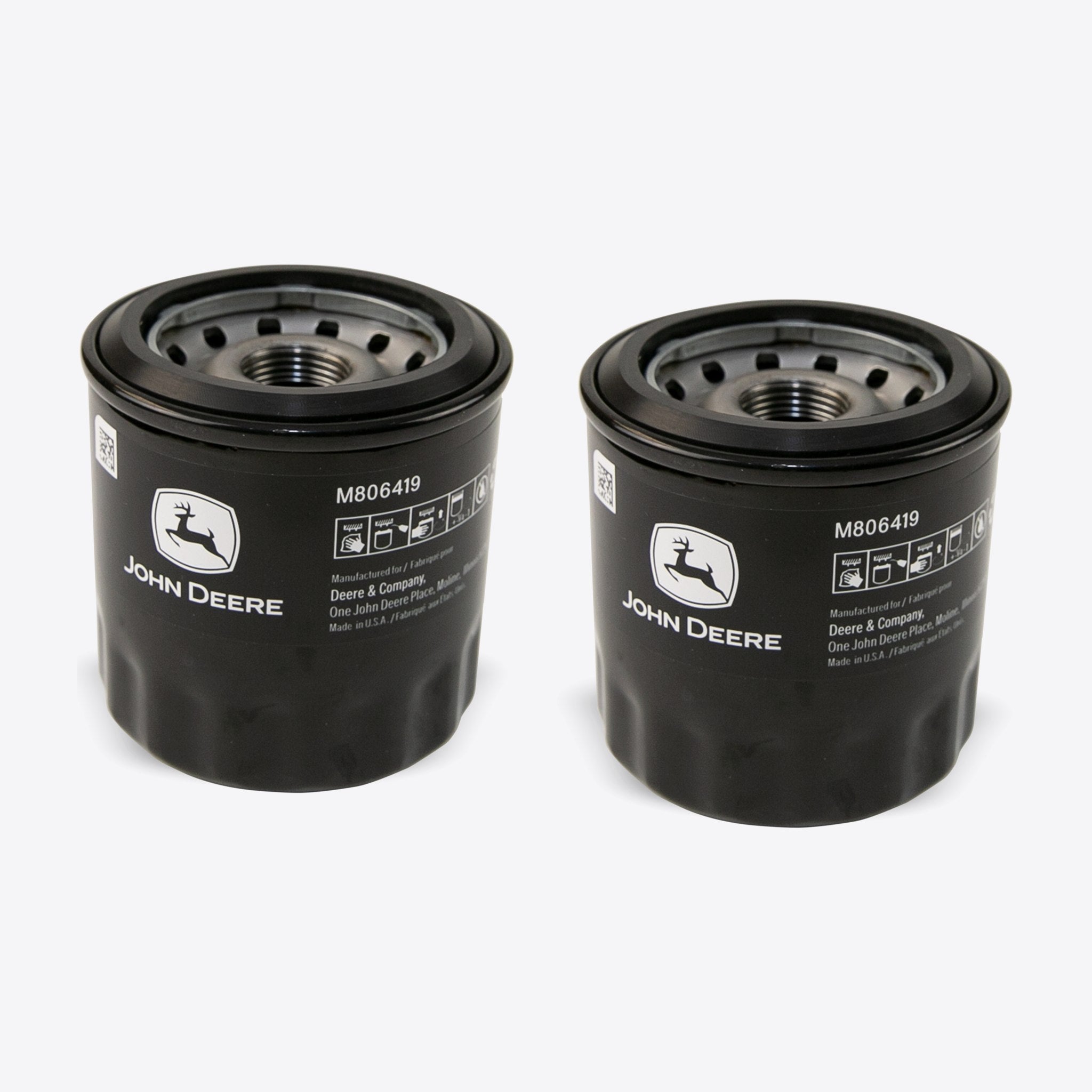

Genuine John Deere M806419 engine oil filter for compact utility tractors, front mowers and turf equipment. This original equipment filter offers 98.6% single-pass efficiency and an anti-drainback valve that keeps oil in the filter for faster lubrication at startup. Two filters per pack.
Key Features
- Genuine John Deere part – original equipment M806419, replaces MIU800646.
- 98.6% single-pass efficiency – captures dirt and metal particles to protect internal engine parts.
- Anti-drainback valve – helps keep oil in the filter when the engine is off, so oil reaches critical parts quickly on startup.
- Sealed, rugged construction – filter paper glued along its full length, end caps sealed with heat-cured plastisol, neoprene gasket and steel canister.
- 2 filters per pack – ready for this service and the next.
Specifications
| Part number | John Deere M806419 |
|---|---|
| Filter type | Spin-on engine oil filter |
| Single-pass efficiency | 98.6% |
| Anti-drainback valve | Yes |
| Replaces | MIU800646 |
| Quantity | 2 filters |
Compatibility
- Compact utility tractors: 2027R, 2032R, 2036R, 2038R, 2520, 2720, 3005, 3025D, 3025E, 3032E, 3033R, 3035D, 3036E, 3038E, 3038R, 3039R, 3043D, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720
- 4 Series tractors: 4005, 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4075R, 4105, 4115, 4200–4710
- Older compact tractors: 670, 755, 756, 770, 790, 850, 855, 856, 870, 900, 970, 990, 997, 1070
- Front mowers & turf: 1445, 1545, 1565, 1570, 1575, 1580, 1585, 1600 Turbo Series II/III, 1620, F935, F1145, Z997R
Fit can vary by engine and serial number. Always confirm with your machine’s parts catalog or serial number before ordering.
Service Tips
- Replace the oil filter at every oil change, following the interval in your operator’s manual.
- Lightly oil the gasket before installing and hand-tighten per the instructions on the filter.
John Deere is a trademark of Deere & Company.
